5 kinds of automatic sorting equipment 3 kinds of conveyor equipment, domestic express delivery sorting center equipment

Shandong Fengke is a high-tech enterprise engaged in the design and manufacture of all kinds of complete sets of opto-electromechanical integration logistics and conveying equipment, automated production lines and all kinds of special machine projects, and has passed the ISO9001 quality management system certification. Welcome friends from all walks of life to visit us.

3 kinds of conveying equipment, namely belt conveyor, chute and telescopic belt conveyor.

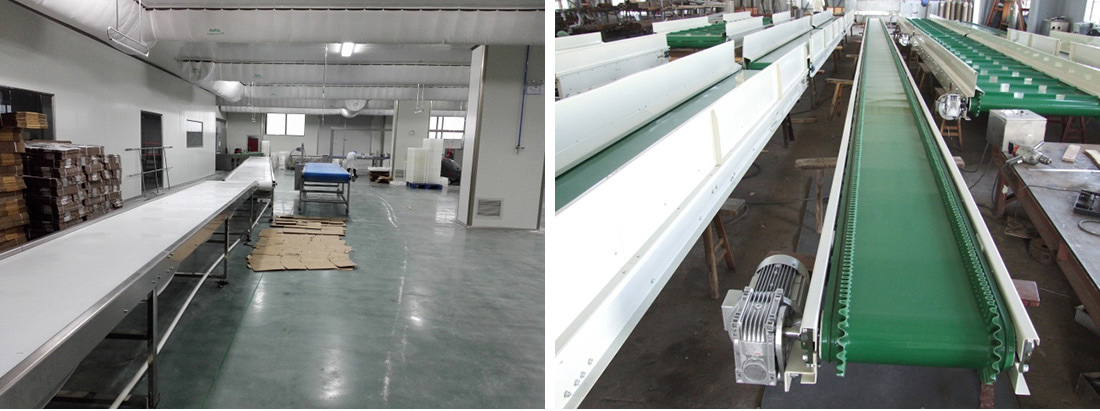

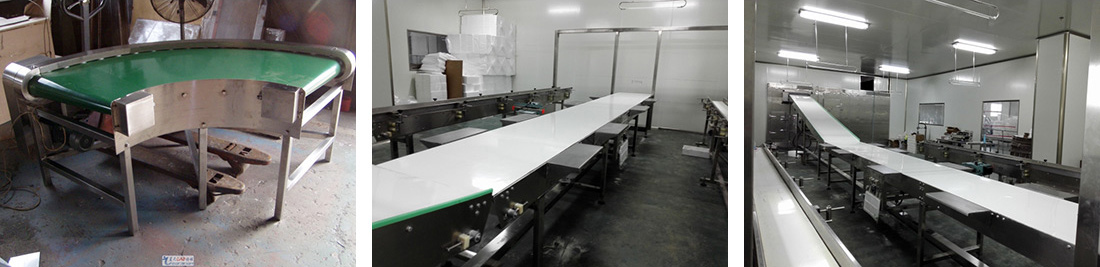

1.1 Belt Conveyor:

Belt conveyor is the equipment used in all sorting centers, although its structure seems to be relatively simple, but the authors believe that there are very few domestic equipment manufacturers who can do a good job with the belt conveyor.

Belt conveyor not only to complete the conveyor function at the same time also to complete the sorting function, sorting matrix is a good interpretation of the combination of these two functions.

1.2 Chute:

Chute is generally arranged between the conveyor, so the chute is also placed in the conveyor part of the discussion. Chute looks simpler than the conveyor, but in fact, the chute is all the logistics equipment structure design is difficult! Domestic suppliers who can do a good job of the chute is very little.

Chute is mainly divided into straight chute and spiral chute two kinds of straight chute is relatively simple, not here to repeat; spiral chute is mainly used in the connection between the conveyor and sorter under the mouth, according to the layout of the conveyor and sorter elevation, spiral chute style is also a variety of different, but the purpose is the same, that is, to make the goods smooth and smooth down; chute material to classify words, chutes are divided into cement chute, Steel wire chute, glass fiber reinforced plastic chute, stainless steel chute and carbon steel chute, in which the cement chute and steel wire chute due to aesthetics and process complexity and other reasons have been basically eliminated; stainless steel chute will only be used in the Middle East tycoon baggage sorting system, the general express delivery enterprises can not afford to use; mainstream application of the chute is carbon steel chute;

1.3 Telescopic belt conveyor:

Telescopic belt conveyor has always been an essential sorting center loading and unloading equipment, its structure relative to the belt conveyor will be a little more complex, but in recent years the technology of the telescopic machine has not been a major innovation, so here we do not talk about the telescopic machine itself, just through the telescopic belt conveyor to talk about unloading the problem of the car.

The current design of the sorting center is the idea of telescopic belt machine unloading connected to the back of the manual operation of the matrix or automatic matrix or automatic sorter, so the unloading of fast and slow will have a direct impact on the subsequent operation, for the automatic matrix or automatic sorter for pieces of table for the number of parcels to receive the design of a fixed value, when the unloading of the car parcels when the amount of more automated equipment is bound to be unable to deal with even if it is a very good flexibility of the manual Operating matrix, telescopic belt machine end unloading faster, the subsequent sorting staff is no way to deal with, so some courier companies will be painted on the telescopic belt machine on the line, each of the two lines can only be put in 1-2 pieces of parcels, in order to control the unloading speed.

Five kinds of automatic sorting equipment, namely, crossbelt sorter, slide shoe sorter, linear belt sorter, sorting robot and modular belt sorter.

2.1 Crossbelt sorter (ring):

Mentioned the automated sorting of express parcels, there is no way not to mention the crossbelt sorter, because this is a familiar automated sorting equipment for the industry, and even once became a courier sorting field “automation” synonymous. To the author's experience in the field of 3, 4 years ago, crossbelt sorter is still a very high, big, on the equipment, and now it has been obliterated; if any logistics equipment manufacturers do not have a crossbelt sorter this product, go out are embarrassed to say hello to others.

2.2 Sliding shoe sorter:

Definition: the surface of the conveyor consists of metal slats, in each slat there is a guide slider made of hard materials, can slide laterally along the slats, usually the slider stops at the side of the conveyor, when the goods to be sorted arrive at the designated crossing, the control system controls the guide bar action to make the slider slide to the opposite side of the conveyor in an orderly manner, so as to promote the goods, and realize the sorting of goods.

2.3 Straight belt sorter:

Definition: The surface of the conveyor consists of metal slats, and on each slat there is a narrow belt that can slide laterally along the slats. When the goods to be sorted arrive at the designated crossing, the control system controls the action of the guiding bar so that the belt slides orderly to the opposite side of the conveyor, thus driving the goods and realizing the sorting of goods.

2.4 Sorting robot:

Definition: the essence of the AGV system, the supply staff to place the goods to be sorted to the AGV car, AGV car after the bar code scanning system to identify the destination of the package, scheduling control system for the AGV car to plan the path, when the goods arrive at the destination of the grill, the AGV top of the flap/belt action (tilting or belt operation) unloading of the goods, to achieve the sorting of goods.

Robot sorting system is the last 1-2 years in the express delivery industry is very hot solution, in the Shentong see the use of this product, the author admires the system developers - layman's ideas successfully in another industry success. Maybe the longer we stay in an industry, the more our thinking will be confined, but laymen are more likely to subvert the existing model.

2.5 Modular Belt Sorter

Definition: It consists of a multi-modular plastic belt and the universal ball/roller embedded in it. When conveying in longitudinal direction, the goods are conveyed in the ball/roller group, which ensures that the goods can realize the function of transitional conveying (Note: the ball can realize the double speed, but the roller cannot realize the double speed);

When the goods arrive at the destination checkpoint, the sorting belt machine under the ball group belt will run transversely positively or negatively, driving the ball on the module to produce transverse rotation to realize the goods sorting, or the rotating wheel under the roller column will swing to realize the left and right rotation of the roller column to realize the goods sorting.
