The working principle of food conveyor, do you understand?

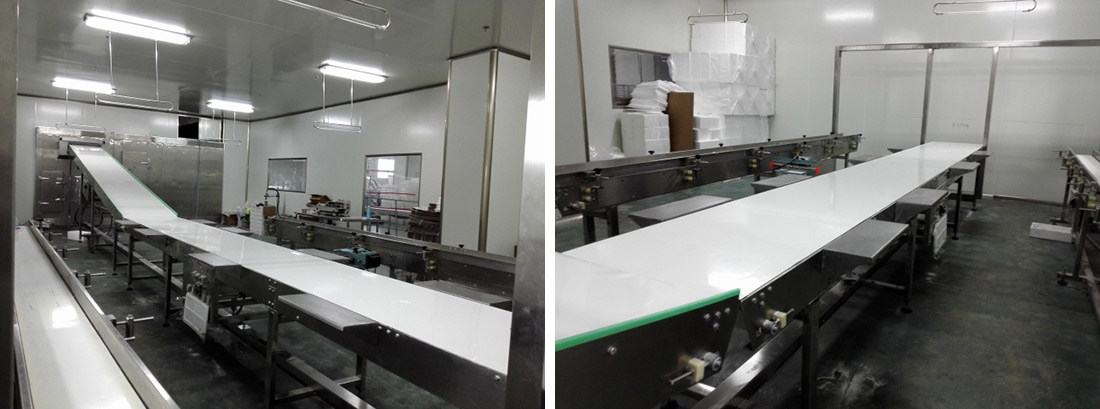

Shandong Fengke, Food conveyor is mainly used to transport food raw materials or finished products. Food conveyor has belt, chain plate, mesh belt, stainless steel belt, part of climbing, with cleaning.

Food conveyor has simple structure, easy maintenance, small energy consumption, low cost of use, mainly used for food, beverage, fruit processing, filling, cans, cleaning, PET bottle blowing, hardware accessories production; Chain plate: POM, PVC, stainless steel 304, 306# material; The whole machine processing: straight line, turn single-row, multiple rows, spacer-raising type.

The food conveyor adopts special food grade conveyor belt, which can meet the requirements of food, medicine, daily chemical industry and so on. In addition to conveying ordinary materials, rubber, canvas, PVC, PU and other materials can be added to the conveyor, which can also meet the special requirements of material transportation such as oil resistance, corrosion resistance, anti-static and so on. In addition, accessories such as push plate, baffle, skirt can be added to the conveyor belt to meet the requirements of different processes.

The food conveyor is stable in transportation, and there is no relative motion between the material and the conveyor belt, which avoids damage to the conveyor. Compared with other conveyors, it is more suitable for occasions with low noise and quiet working environment.

According to the purpose of use, conveying machinery can be divided into: bulk material transportation machinery (such as: belt conveyor screw conveyorbucket elevator large inclination conveyor, etc.) and logistics transportation machinery (such as: assembly line, assembly line equipment, conveyor line, hanging conveyor line, elevator, pneumatic elevator, rack and pinion elevator, scissor type, elevator, roller conveyor, elevator) and logistics transportation machinery (such as: assembly line, assembly line equipment, conveyor lines, suspension transfer lines, lifts, air lifts, lift frames, scissor and fork, lifts, roller conveyors, elevators).

JINAN FENKE MACHINERY AND EQUIPMENT CO.,LTD,Bulk Conveying Machinery

(1)Belt conveyor

Belt conveyor consists of driving device, tension device, intermediate frame of conveyor belt and rollers.

As traction and bearing parts, it continuously transports broken materials or parts.

Belt conveyor is a kind of friction drive for continuous transportation of materials, with which materials can be transported on a certain transmission line, forming a material conveying process from the initial feeding point to the unloading point. It can not only carry out the transportation of broken materials, but also the transportation of goods. In addition to pure material transportation, it can also be matched with the process requirements in the production process of industrial enterprises to form a rhythmic flow line. Therefore, belt conveyor is widely used in modern industrial enterprises.

Belt conveyors are widely used in underground roadways, mine surface transportation systems, open-pit mines and mineral processing plants, and are suitable for horizontal or inclined transportation.

General belt conveyor consists of conveyor belt, roller and transmission, brake, tension, direction change, loading and unloading, cleaning and so on.

Conveyor Belt

There are two commonly used tape and plastic tape, the tape is suitable for working environment temperature between -15 ° C ~ 40 ° C, the material temperature does not exceed 50 ° C, scattered particles upward conveying inclination angle of 12 ° ~ 24 °, can be used for high inclination conveying, plastic belt has the advantages of oil-resistant, acid and alkali resistance, etc., but weather resistance is poor, easy to skid, aging, the bandwidth is the main technical parameters of the belt conveyor.

Drum

It is divided into single roller (tape to roller wrapping angle of 210 ° ~ 230 °), double roller (wrapping angle of up to 350 °) and multi-roller (for high-power), etc., there are groove rollers, flat rollers, adjusting rollers, cushioning rollers and so on. Groove rollers (consisting of 2 to 5 rollers) support bearing branches to transport bulk materials; alignment rollers are used to adjust the lateral position of the belt to avoid runout; buffer rollers are loaded at the receiving end to minimize the impact of materials on the belt.

Drums

Separate the driving roller and reversing roller, the driving roller is the main part of the transportation power.

4Fastening device

Its function is to make the conveyor belt reach the necessary tension to avoid slipping on the driving drum and to ensure the deflection of the conveyor belt between the rollers within the specified range.
